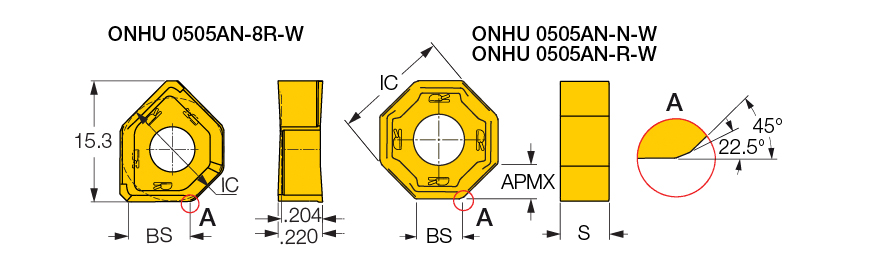

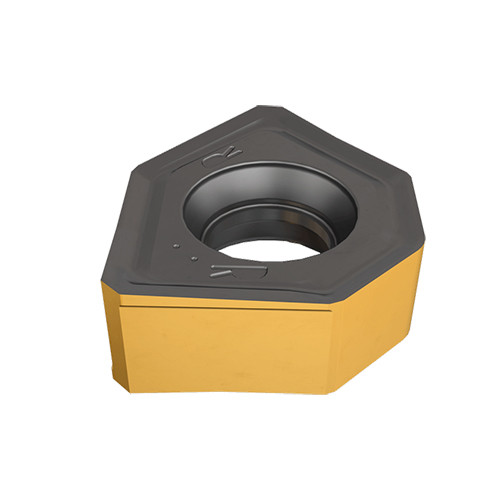

ONHU 0505AN-N-W IC810
Milling Insert; ONHU0505AN-N-W IC810 IC810 × 0.193″ Thickness ; Carbide ; AlTiCrN+TiN
| Applicable Material | | Steel | Cast Iron | | Shape | 135° Octagon |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.0787″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.512″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.193″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Wiper Edge Length (BS) | 0.185″ | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Coating | AlTiCrN+TiN | Body Material | Carbide |
| Grade | IC810 |
Product Features
| Family Description | Double-sided octagonal wiper inserts with 4 or 8 cutting edges (HELIDO 845 line). | Country of Origin | Israel |
| Remarks | To be used with ONMU/ONHU 05 inserts. |
Shipping Info
Package Weight
0.015
