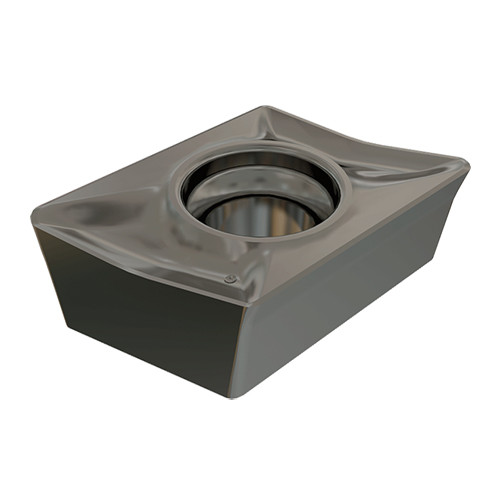

XCMT 120408TR IC908
Milling Insert; 0.374″ Length × 0.48″ Width × 0.197″ Thickness ; IC908 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC908 |
| Application | | Facing | Rampdown | Shouldering | Side Plunging | | Shape | Round |

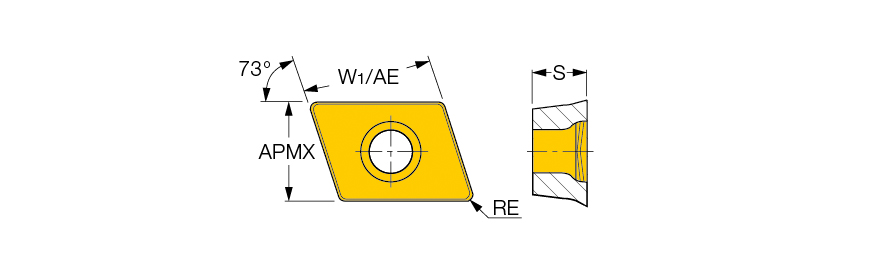

| Cutting Edge Length (L) | 0.374″ | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Insert Length (INSL) | 0.374″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.374″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.48″ | Minimum Feed per Tooth (fz(min)) | 0.0043 ″/tooth |
| Insert Thickness (S) | 0.197″ | Number of Cutting Edges | 2 |
| Insert Included Angle (EPSR) | 73 Degrees | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | 73° rhombic, 7° positive flank inserts for plungers. | Country of Origin | Israel |
Shipping Info
Package Weight
0.016
