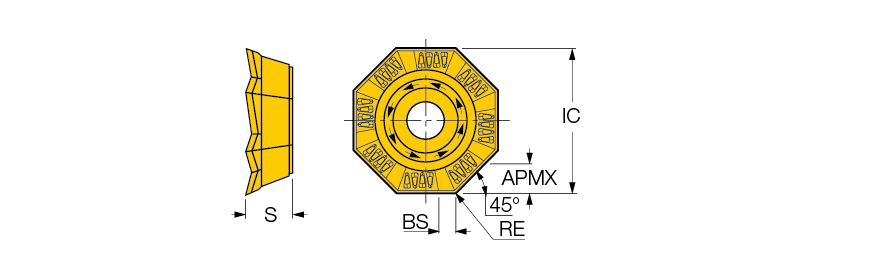

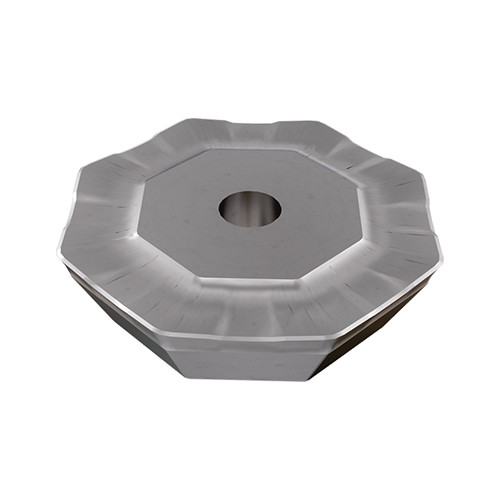

OFMR 0704-AETN IC328
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Coating | TiCN |
| Application | | Facing | | Grade | IC328 |
| Insert Length (INSL) | 0.261″ | Shape | 135° Octagon |
| Corner Radius (RE) | 0.0236″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.209″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.701″ | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 0.179″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.067″ | Body Material | Carbide |
| Insert Included Angle (EPSR) | 135 Degrees |
Product Features
| Family Description | HELIOCTO octagonal milling insert with a positive rake. Used for stainless steel and high temperature alloys. | Country of Origin | Israel |
Shipping Info
Package Weight
0.034
