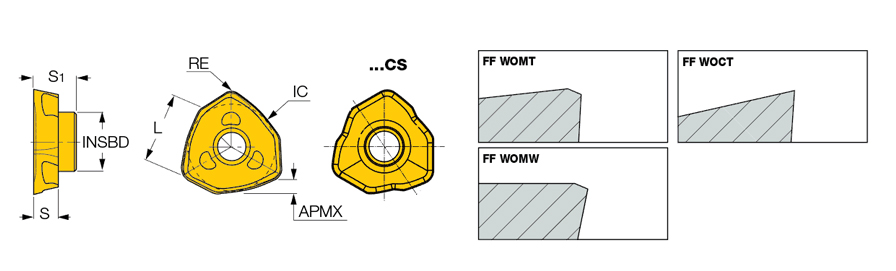

FF WOMT 09T320T * IC5400
| Applicable Material | | Steel | Stainless Steel | | Insert Body Diameter (INSBD) | 0.366″ |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Maximum Feed per Tooth (fz(max)) | 0.0787 ″/tooth |
| Insert Length (INSL) | 0.417″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0787″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.079″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.571″ | Minimum Feed per Tooth (fz(min)) | 0.0276 ″/tooth |
| Insert Thickness (S) | 0.156″ | Number of Cutting Edges | 3 |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | IC5400 | Body Material | Carbide |
| Shape | 80° Trigon |
Product Features
| Family Description | Arc cutting edge inserts for fast feed machining at small depths of cut. Designed with a cylinder on the bottom that is seated in a mating hole in the pocket (FEEDMILL). | Country of Origin | Israel |
Shipping Info
Package Weight
0.024
