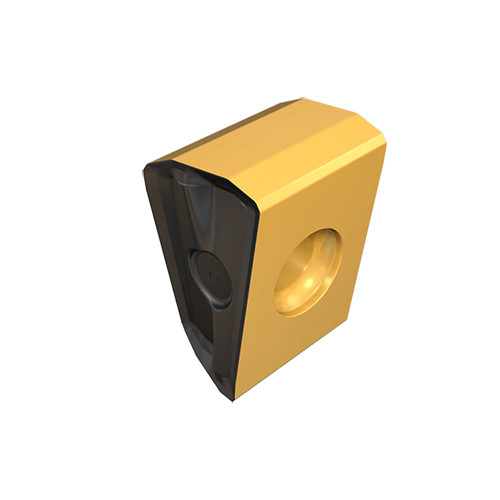

T465 LNHT 2212-ZNTR IC830

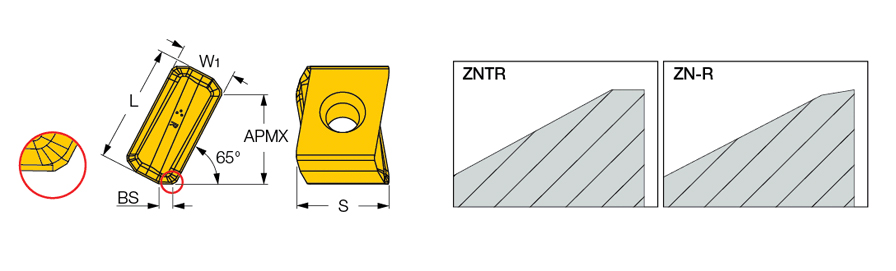

Milling Insert; T465LNHT2212ZNTR IC830 IC830 × 0.472″ Width × 0.78″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Rectangle |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0177 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.748″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.472″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.78″ | Tool Type | Mill Tangential Inserts |
| Wiper Edge Length (BS) | 0.098″ | Minimum Feed per Tooth (fz(min)) | 0.0098 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 4 |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
Product Features
| Family Description | HELITANG T465 Line, tangentially clamped inserts with 4 cutting edges.Used on 65° cutters, for up to .750″ depth of cut. The insert has a positive rake and axial angles and a .10″ flat wiper for high surface finish. | Country of Origin | Israel |
| Remarks | LNMT - utility inserts, LNHT-precision inserts. |
Shipping Info
Package Length
1.00000
Package Width
.60000
Package Height
.50000
Package Weight
0.131
