RCCW 1607-FW IC908

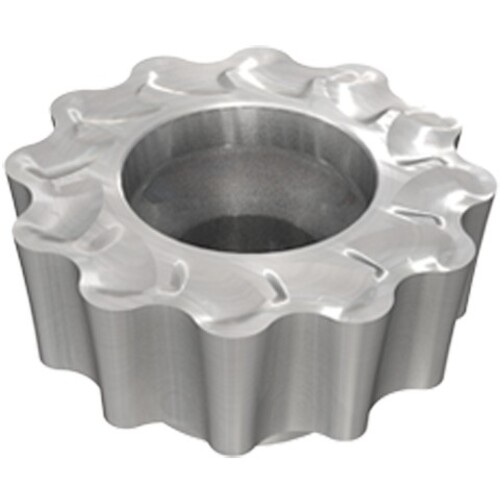

Milling Insert; RCCW1607FW IC908 IC908 × 0.197″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Maximum Feed per Tooth (fz(max)) | 0.0138 ″/tooth |
| Application | | Facing | Helical Interpolation | Milling Inserts | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.315″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.197″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Shape | Round |
Product Features
| Family Description | MILLSHRED, fully effective, serrated inserts with four indexing orientation options. Produces small chips for easy evacuation, even from deep cavities. Small cutting forces - therefore the required machining power is low. | Country of Origin | Israel |
| Remarks | For chipformer details click on "More Info". |
Shipping Info
Package Weight
0.030
