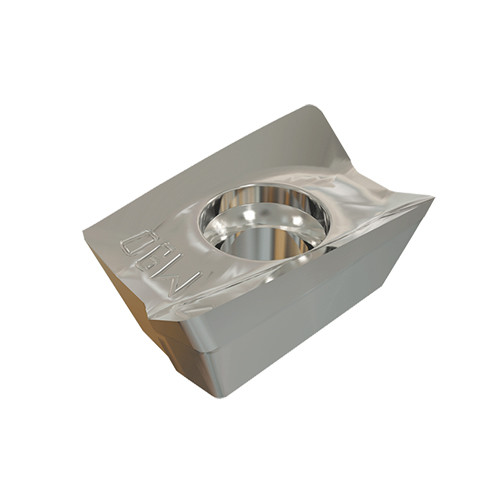

HM90 ADCR 1505PDFR-P IC08
Milling Insert; 0.642″ Length × 0.376″ Width × 0.272″ Thickness ; IC08 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | IC08 |
| Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | | Shape | 85° Parallelogram |

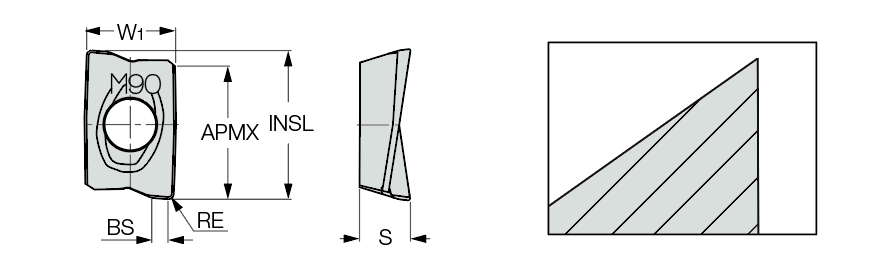

| Cutting Edge Length (L) | 0.642″ | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Insert Length (INSL) | 0.65″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.472″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Width (W1) | 0.376″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.272″ | Cutting Edge Effective Length (LE) | 0.602″ |
| Wiper Edge Length (BS) | 0.157″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | HELI2000 milling insert, peripherally ground with a super positive polished rake. Used for machining aluminum, titanium and magnesium. | Country of Origin | Israel |
Shipping Info
Package Weight
0.018
