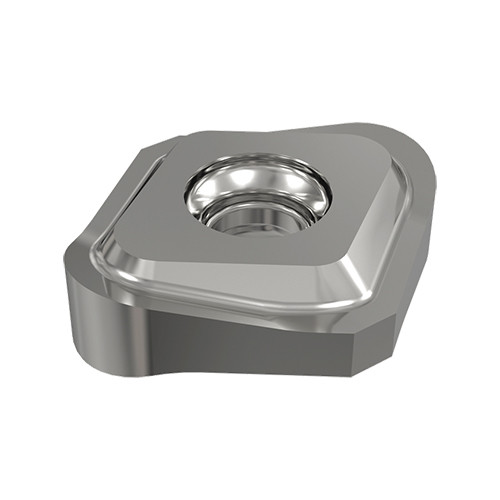

ENHT 100410 IC908
Milling Insert; ENHT100410 IC908 END IC908 × 0.165″ Thickness ; Carbide ; TiAlN

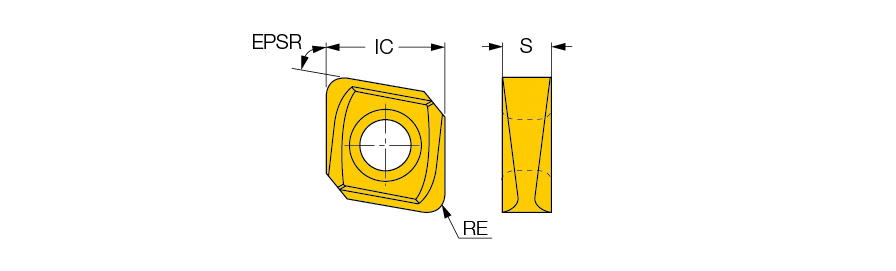

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Application | | Plunging & Recessing | Profiling | Rampdown | Shouldering | Side Plunging | Undercutting | | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0394″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.413″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.165″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Included Angle (EPSR) | 75 Degrees | Number of Cutting Edges | 4 |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Shape | 75° Rhombic |
Product Features
| Family Description | Toroidal bull nose peripherally ground inserts with 4 cutting edges. Used for undercutting and for finish profiling on steep and poorly supported surfaces (TORMILL). | Country of Origin | Israel |
Shipping Info
Package Weight
0.013
