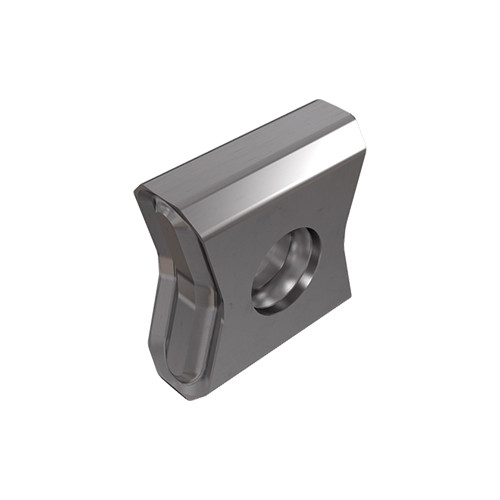

LNKX 1506 1.5X45PN-N IC928
Milling Insert; LNKX1506 1.5X45PNNIC928 IC928 × 0.236″ Width × 0.546″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC928 |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Shape | Rectangle |

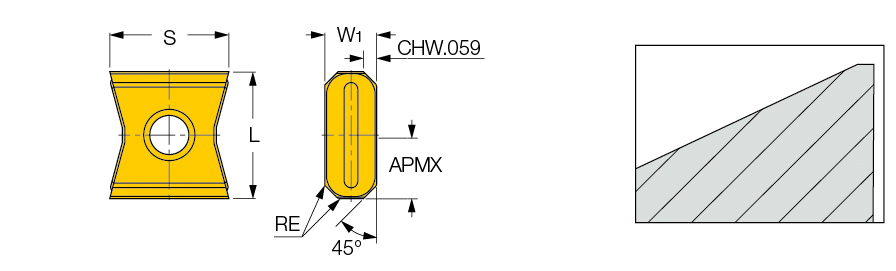

| Insert Length (INSL) | 0.591″ | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.276″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.546″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | Tangentially clamped chamfered inserts used only on 90° cutters for smooth engagement and elimination of chipping on the material edge during exiting. The 45° chamfer enables machining closer to the clamping fixture. | Country of Origin | Israel |
| Remarks | A chamfered insert, used only on 90° cutters for smooth engagement Chatter reduction and elimination of chipping on material edge during exit 4 R.H. and 4 L.H. cutting edges when used on F90LN.. cutters |
Shipping Info
Package Weight
0.030
