APKR 1003PDR-HM IC328
Milling Insert; 0.441″ Length × 0.264″ Width × 0.148″ Thickness ; IC328 ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | 85° Parallelogram |

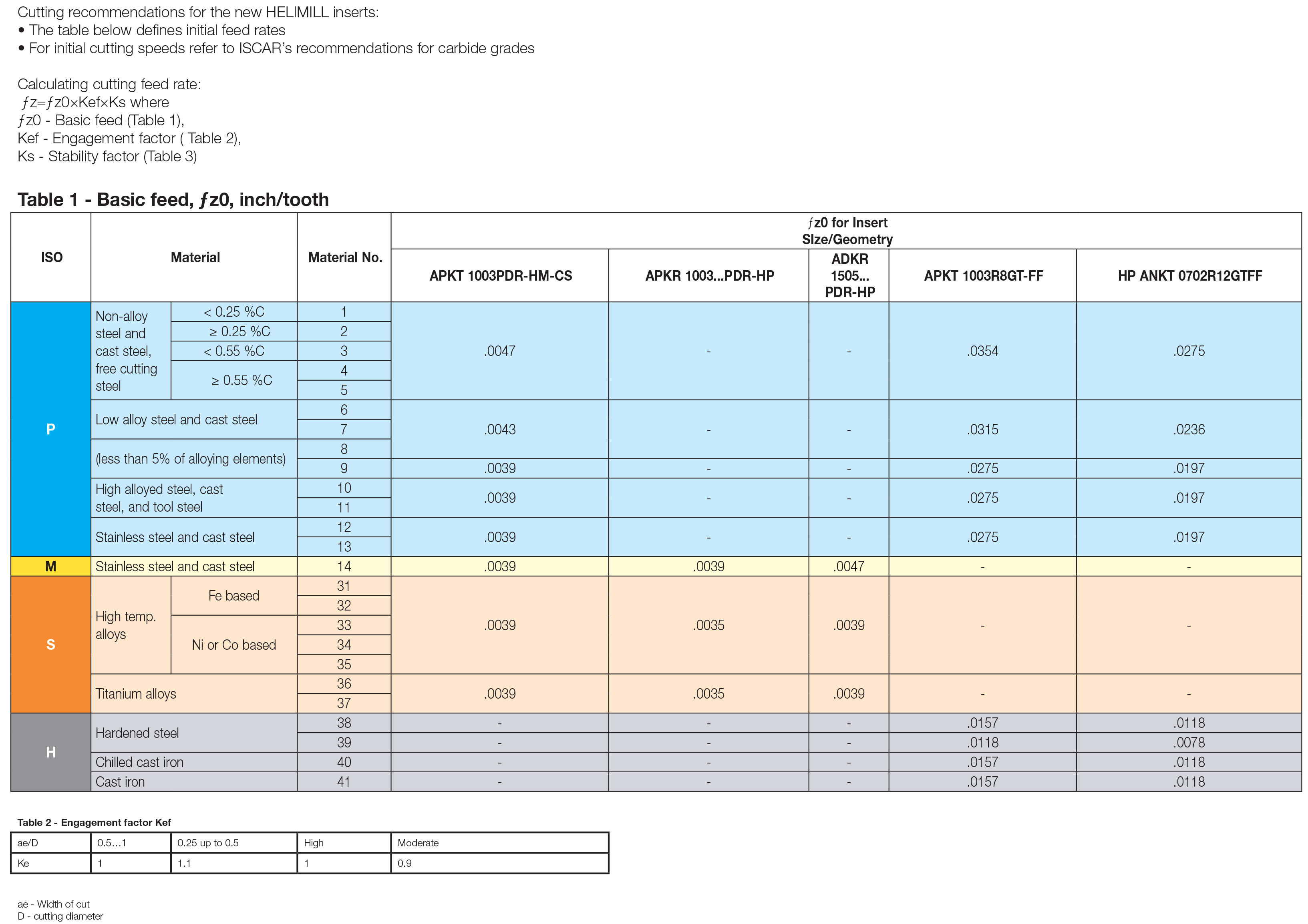

| Application | | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Cutting Edge Length (L) | 0.441″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.441″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0197″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.3858″ | Minimum Feed per Tooth (fz(min)) | 0.0027 ″/tooth |
| Insert Width (W1) | 0.264″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.148″ | Cutting Edge Effective Length (LE) | 0.406″ |
| Wiper Edge Length (BS) | 0.047″ | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC328 |
Product Features
| Family Description | High positive inserts for ISO M and ISO S applications (for machining stainless steel, titanium and high-temperature alloys) | Country of Origin | Israel |
Shipping Info
Package Length
.30000
Package Width
.20000
Package Height
.10000
Package Weight
0.006
