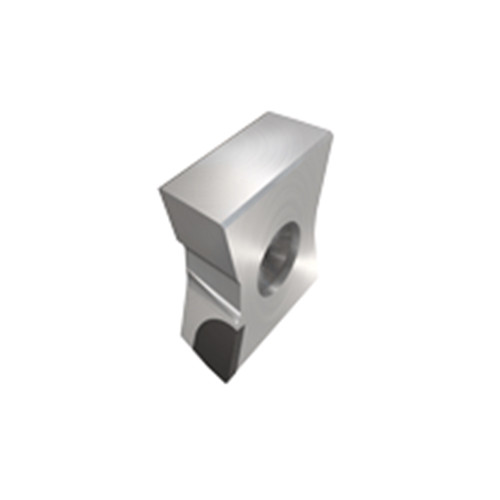

LNAR 150604PN-R-S ID5
Milling Insert; LNAR 150604PN-R-S ID5 ID5 × 0.236″ Width × 0.551″ Thickness ; PCD ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | Rectangle |
| Application | | Facing | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |

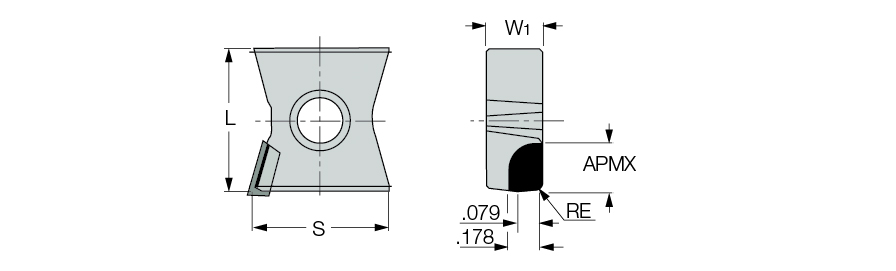

| Insert Length (INSL) | 0.593″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0157″ | Cutting Edge Material | PCD |
| Depth of Cut Maximum (APMX) | 0.197″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.551″ | Number of Cutting Edges | 1 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Grade | ID5 | Body Material | Carbide |
Product Features
| Family Description | TANGMILL tangentially clamped milling inserts with a positive rake and brazed PCD tips. Used for machining aluminum. Grade ID5 for aluminum with up to 12% silicon and ID8 for higher silicon contents. | Country of Origin | Italy |

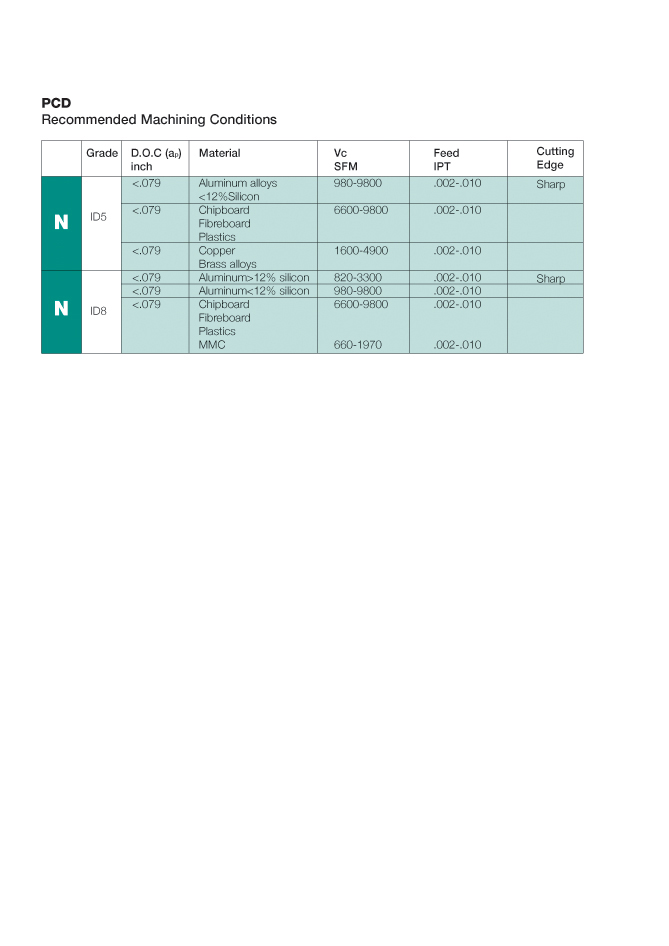

| Remarks | For D.O.C and cutting speed recommendations click on More Info. |
Shipping Info
Package Weight
0.044
