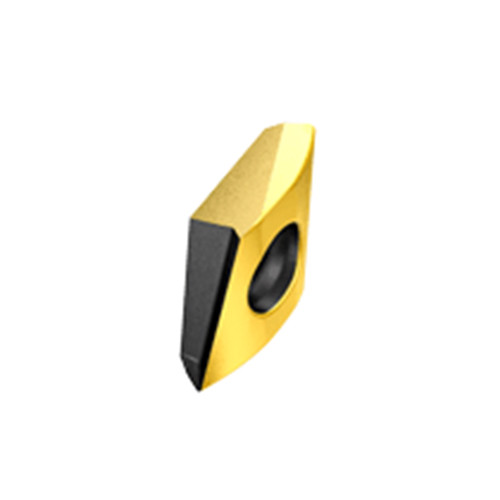

T290 LNMT 100405TR IC810
Milling Insert; T290LNMT100405TR IC810 IC810 × 0.161″ Width × 0.35″ Thickness ; Carbide ; AlTiCrN+TiN
| Applicable Material | | Steel | Cast Iron | | Grade | IC810 |
| Application | | Counter Boring | Facing | Shouldering | Slotting | | Shape | Rectangle |

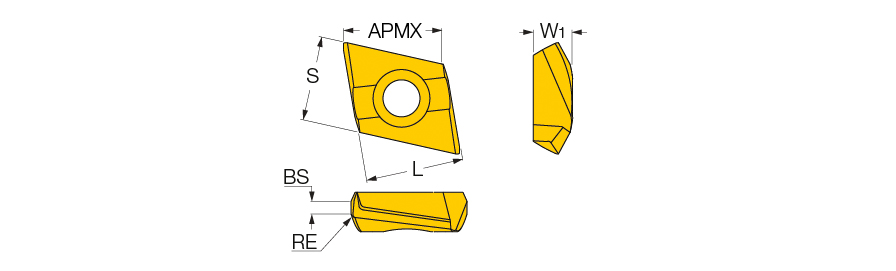

| Insert Length (INSL) | 0.409″ | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Corner Radius (RE) | 0.0197″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.394″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.161″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.35″ | Number of Cutting Edges | 2 |
| Wiper Edge Length (BS) | 0.051″ | Measurement Type | Inch |
| Coating | AlTiCrN+TiN | Body Material | Carbide |
Product Features
| Family Description | SUMOMILL Tangential insert with 2 cutting edges. | Country of Origin | Israel |
| Remarks | LNMT-utility inserts, LNHT-precision inserts |
Shipping Info
Package Weight
0.011
