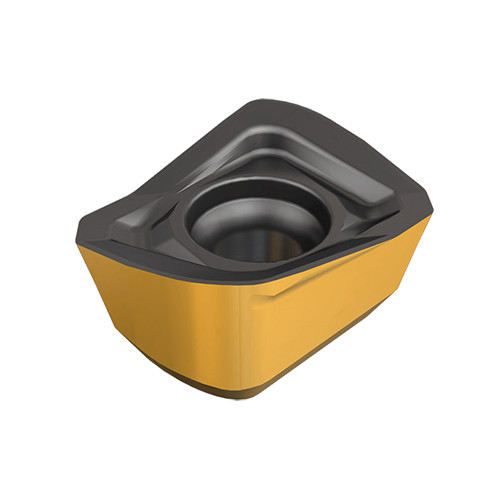

H490 ANKX 1205R15T-FF IC830
Milling Insert; 0.531″ Length × 0.402″ Width × 0.252″ Thickness ; IC830 ; Carbide ; AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC830 |
| Application | | Facing | Fast Feed Milling | Rampdown | | Shape | 85° Parallelogram |

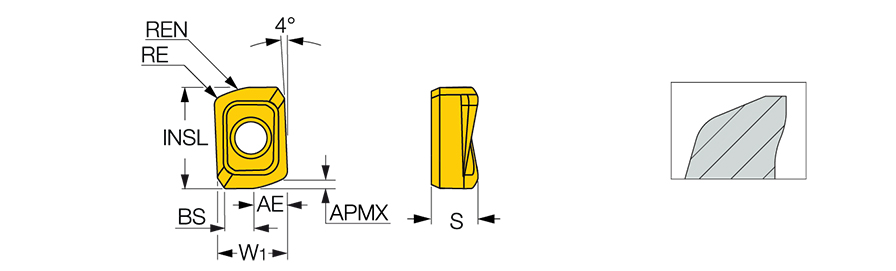

| Cutting Edge Length (L) | 0.531″ | Maximum Feed per Tooth (fz(max)) | 0.0787 ″/tooth |
| Insert Length (INSL) | 0.531″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.059″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.055″ | Tool Type | Double sided Inserts |
| Insert Width (W1) | 0.402″ | Minimum Feed per Tooth (fz(min)) | 0.0394 ″/tooth |
| Insert Thickness (S) | 0.252″ | Number of Cutting Edges | 2 |
| Wiper Edge Length (BS) | 0.138″ | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
Product Features
| Family Description | HELIDO, single-sided rectangular inserts, with 2 helical cutting edges. Very strong construction, for fast feed milling at small depths of cut. | Country of Origin | Israel |
| Remarks | The cutting diameter of the tool is .02 larger than the nominal diameter when using this insert. Tool corner should be modified by rounding to R.08 At D.O.C. larger than APMX, regular insert feed should be applied. For insert mounting Click on More Info. |
Shipping Info
Package Weight
0.018
