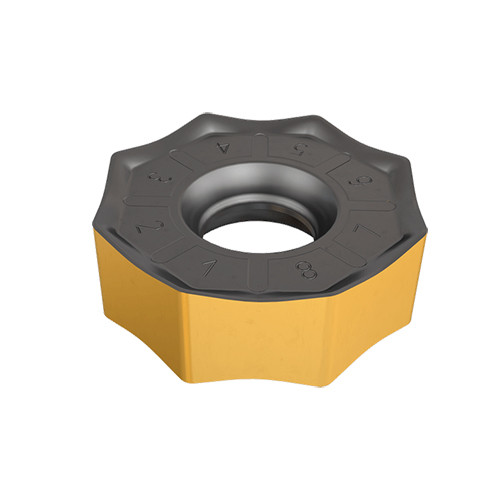

ONMU 100816-N-RM IC830
Milling Insert; ONMU100816NRM IC830 IC830 × 0.366″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC830 |
| Application | | Facing | Slanted Shoulder & Chamfer | | Shape | 135° Octagon |

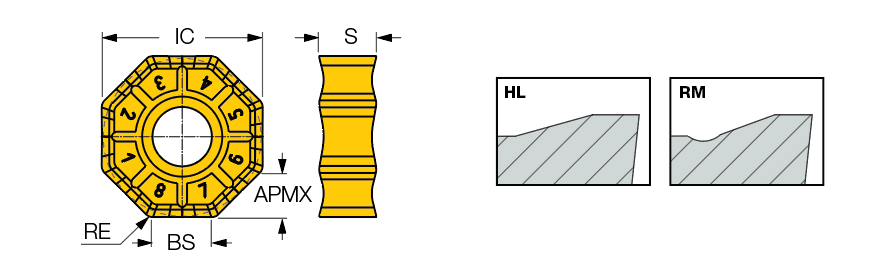

| Corner Radius (RE) | 0.063″ | Maximum Feed per Tooth (fz(max)) | 0.0157 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.276″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 1.035″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.366″ | Minimum Feed per Tooth (fz(min)) | 0.0098 ″/tooth |
| Wiper Edge Length (BS) | 0.378″ | Number of Cutting Edges | 16 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
Product Features
| Family Description | Double-sided heavy duty octagonal inserts with 16 cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.119
