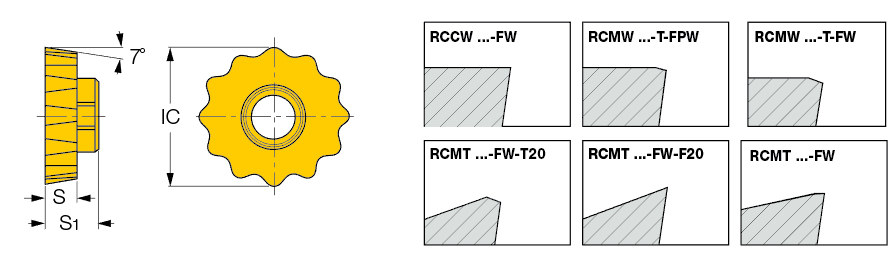

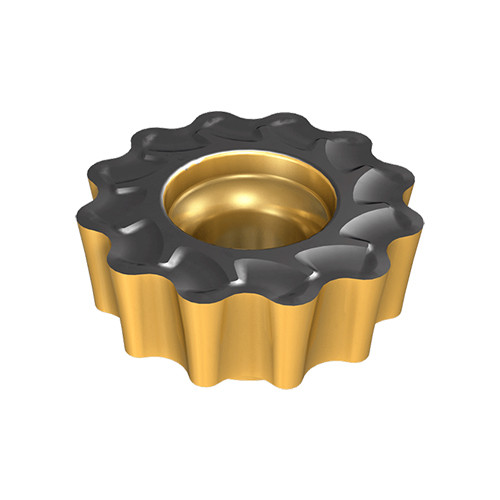

RCMT 2009-FW-T20 IC928
Milling Insert; RCMT2009FWT20 IC928 IC928 × 0.236″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0138 ″/tooth |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.3937″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.787″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Insert Thickness (S) | 0.236″ | Number of Cutting Edges | 4 |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC928 | Body Material | Carbide |
| Shape | Round |
Product Features

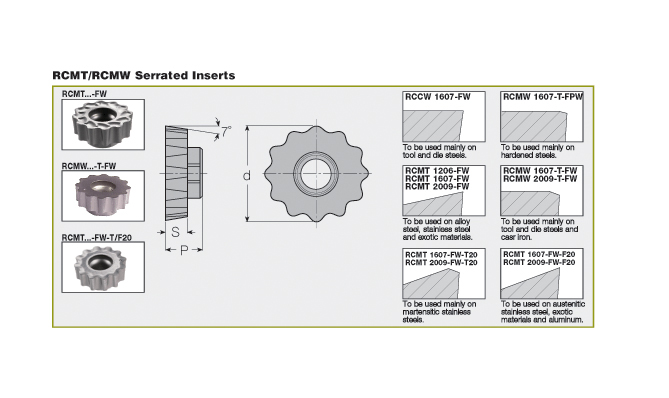

| Family Description | MILLSHRED, fully effective, serrated inserts with four options for indexing orientation Produces small chips for easy evacuation, even from deep cavities. Small cutting forces - therefore the required machining power is low. | Country of Origin | Israel |
| Remarks | For chipformer details click on More Info. |
Shipping Info
Package Weight
0.055
