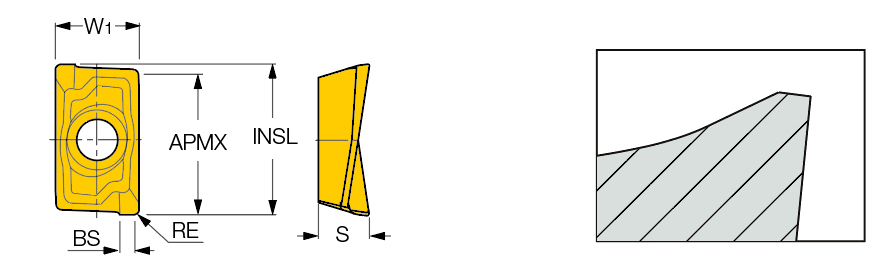

ADKT 1505PDL-HM
| Applicable Material | Steel|Stainless Steel|Cast Iron | Grade | IC520M |
| Application | | Facing | Milling Inserts | Profiling | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.618″ | Maximum Feed per Tooth (fz(max)) | 0.0059 inch/tooth |
| Corner Radius (RE) | 0.031″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.543″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.377″ | Minimum Feed per Tooth (fz(min)) | 0.0031 inch/tooth |
| Insert Thickness (S) | 0.222″ | Measurement Type | Metric |
| Wiper Edge Length (BS) | 0.063″ | Body Material | Carbide |
| Coating | TiCN |
Product Features
| Family Description | HELIMILL inserts with 2 helical cutting edges, for general use. | Country of Origin | Israel |
Shipping Info
Package Length
4.00000
Package Width
1.50000
Package Height
.50000
Package Weight
0.018
