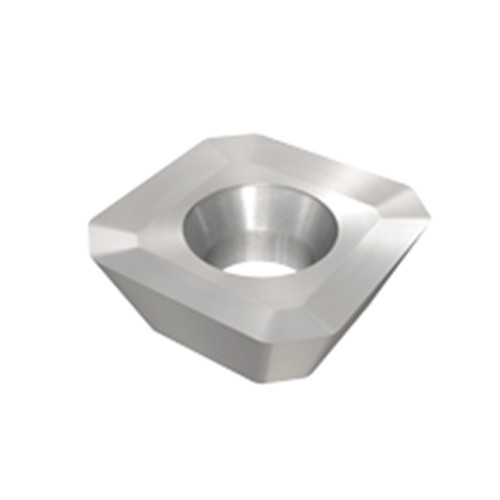

SEHT 43AFN IC28
Milling Insert; SEHT43AFN IC28 IC28 × 0.187″ Thickness ; Carbide ; Uncoated

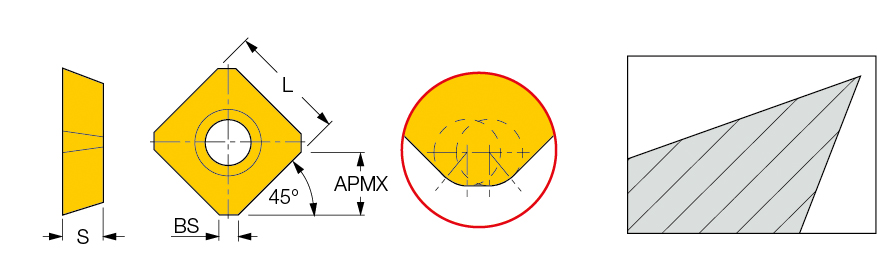

| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | Square |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Insert Length (INSL) | 1/2″ | Cutting Direction (HAND) | Right / Left |
| Depth of Cut Maximum (APMX) | 0.256″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.187″ | Minimum Feed per Tooth (fz(min)) | 0.0047 ″/tooth |
| Wiper Edge Length (BS) | 0.075″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC28 |
Product Features
| Family Description | Precision ground, sharp cutting edges, general use milling inserts for 45° milling cutters. | Country of Origin | Israel |
Shipping Info
Package Weight
0.014
