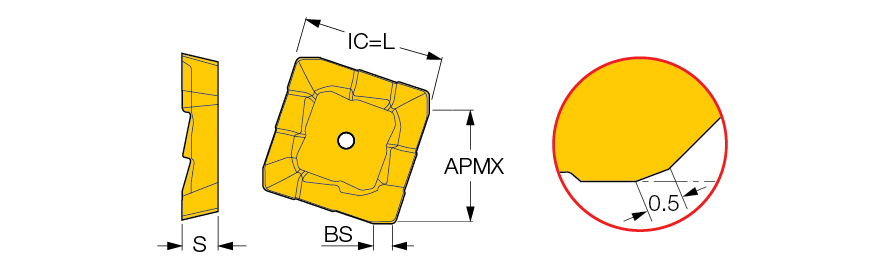

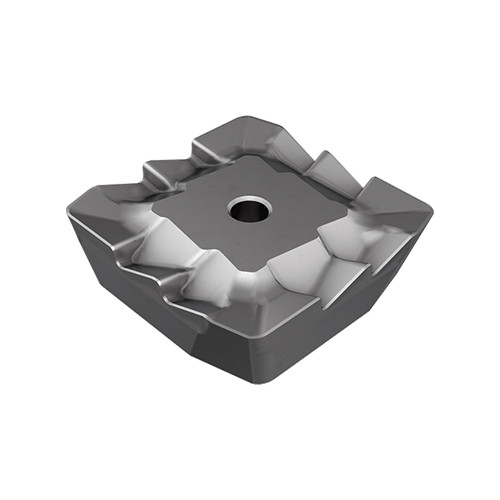

SPKR 1203EDTR-HS IC520M
Milling Insert; SPKR 42EDTR-HS IC520M IC520M × 1/8″ Thickness ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Application | | Facing | Slanted Shoulder & Chamfer | | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 12.7 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 9.5 mm | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 3.18 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 4 |
| Coating | TiCN | Measurement Type | Metric |
| Grade | IC520M | Body Material | Carbide |
| Shape | Square |
Product Features
| Family Description | Square positive inserts with chip splitting serrated cutting edges. Improves stability and enables milling at high depth of cut. | Country of Origin | Israel |
Shipping Info
Package Weight
0.015
