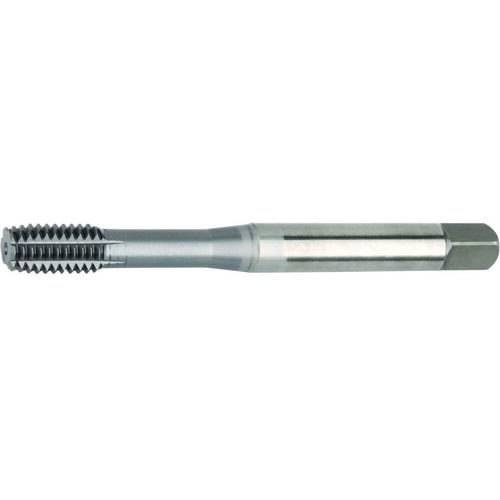

7/16-14 H5 FT BOTT DIN ANSI CH
| Tool Type | High Performance Tap|Forming Tap | Threads per Inch (TPI) | 14 |
| Thread Diameter Size (TDZ) | 7/16″ | Helix Angle | 45 Degrees|CW |
| Overall Length (OAL) | 3.94″ | Chamfer | 1P-2P |
| Thread Cutting Part Length (THL) | 0.71″ | Measurement Type | Fractional |
| Connection Diameter Machine Side (DCONMS) | 0.323″ | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H5 | Style | Bottoming |
| Tap Standard | ANSI|DIN | Cutting Direction (HAND) | Right Hand |
| Thread Standard | NC | Thread Size | 7/16″ - 14 |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | DE |
Shipping Info
Package Weight
.0815
