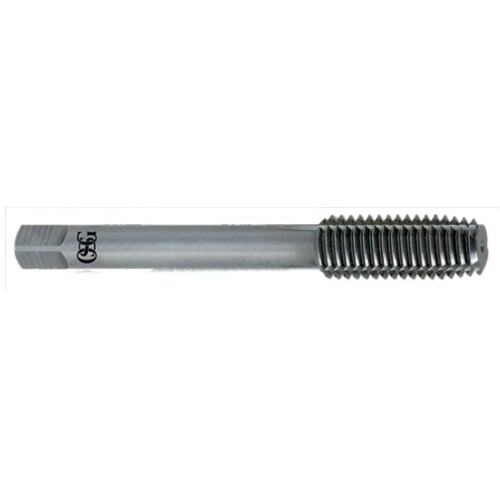

M5x0.8 0Fl RH6 Carbide Forming Tap-Bright
Forming Tap; M5 × 60 mm OAL × 26.1 mm LU × 5.5 mm Shank Dia. ; Carbide ; Bright ; | RH6 | ; Series 369
| Tool Type | Forming Tap | Thread Standard | Metric |
| Thread Diameter Size (TDZ) | M5 | Applicable Material | Aluminum / Non-Ferrous Materials |
| Overall Length (OAL) | 60 mm | Coating | Bright |
| Thread Cutting Part Length (THL) | 22 mm | Chamfer | 4P-4.5P |
| Usable Length (LU) | 26.1 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 5.5 mm | End Shape | Chamfer |
| Flute Count (NOF) | 0 | Cutting Edge Material | Carbide |
| Thread Tolerance Class (TCTR) | RH6 | Series/List # | 369 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.30000
Package Weight
.0400
