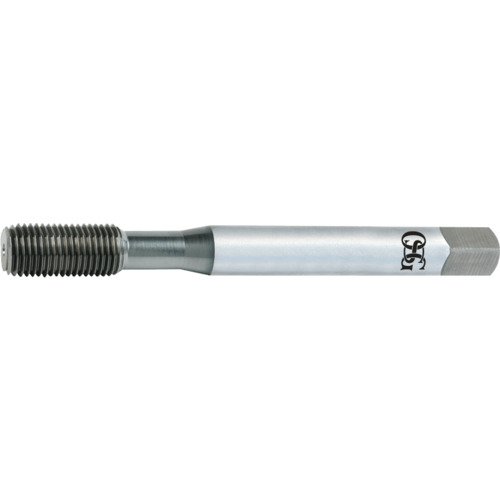

10-24 H5 4.5P NRT TICN
Forming Tap; #10 - 24 ; 2.37″ OAL × 0.949″ LU × 0.194″ Shank Dia. ; HSSCo ; TiCN ; H5 ; Series 14001
| Tool Type | Forming Tap | Coating | TiCN |
| Thread Diameter Size (TDZ) | #10 | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2.37″ | Threads per Inch (TPI) | 24 |
| Thread Cutting Part Length (THL) | 7/8″ | Chamfer | 4.5P |
| Usable Length (LU) | 0.949″ | Measurement Type | Wire Gauge |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | End Shape | Chamfer |
| Flute Count (NOF) | 0 | Cutting Edge Material | HSSCo |
| Thread Tolerance Class (TCTR) | H5 | Series/List # | 14001 |
| Thread Standard | UNC | Thread Size | #10 - 24 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.30000
Package Weight
0.005
