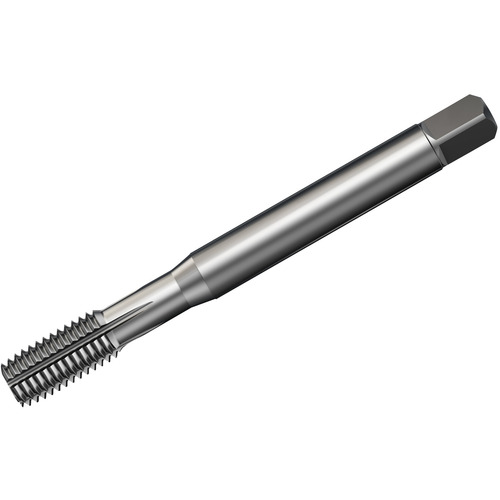

E8921/4 UNC Form Tap 1/4 20
Forming Tap; 1/4″ - 20 ; 80 mm OAL × 25.6 mm LU × 6.48 mm Shank Dia. ; HSSPM ; TiN ; 2B
| Tool Type | Forming Tap | Thread Standard | NC |
| Thread Diameter Size (TDZ) | 1/4″ | Applicable Material | Steel|Non-Ferrous Metals|Hi-Temp Alloys|Stainless Steel |
| Overall Length (OAL) | 80 mm | Coating | TiN |
| Thread Cutting Part Length (THL) | 15 mm | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 25.6 mm | Threads per Inch (TPI) | 20 |
| Connection Diameter Machine Side (DCONMS) | 6.48 mm | Measurement Type | Fractional |
| Flute Count (NOF) | 4 | Cutting Edge Material | HSSPM |
| Thread Tolerance Class (TCTR) | 2B | Cutting Direction (HAND) | Right Hand |
| Tap Standard | ANSI|DIN | Thread Size | 1/4″ - 20 |
Product Features
| Country of Origin | SE |
Shipping Info
Package Weight
.2500
