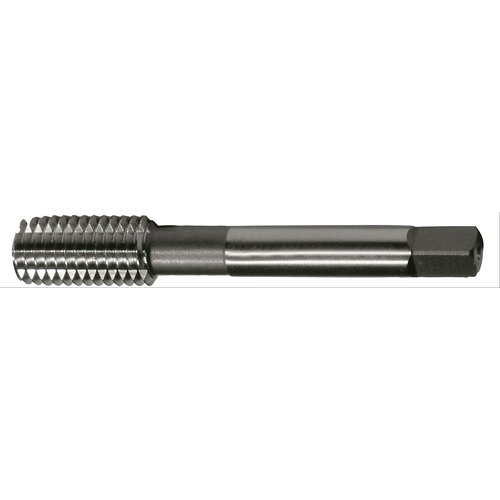

5/16-18 UNC 0 Flute H5 HSS CNC Bottoming Chamfer General Purpose Forming Tap- Bright
Forming Tap; 5/16″ - 18 ; 2-23/32″ OAL × 0.318″ Shank Dia. ; HSS ; Uncoated ; H5 | 2B | 3B ; Series 1092
| Tool Type | Machine Tap | Chamfer | Bottoming |
| Thread Diameter Size (TDZ) | 5/16″ | Length Group | 2D |
| Overall Length (OAL) | 2-23/32″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 11/16″ | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Style | Bottoming |
| Thread Tolerance Class (TCTR) | H5 | 2B | 3B | End Shape | Square |
| Thread Standard | NC | Cutting Edge Material | HSS |
| Application | General Purpose | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | | Series/List # | 1092 |
| Coating | Uncoated | Shank Type | Round w/ Drive Square |
| Threads per Inch (TPI) | 18 | Thread Size | 5/16″ - 18 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.049
