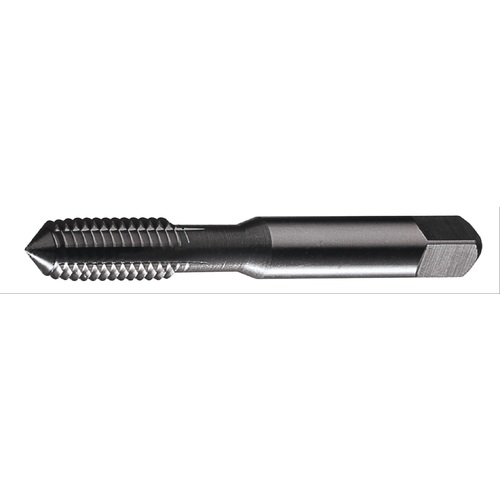

#10-24 UNC 0 Flute H4 HSS CNC Plug Chamfer General Purpose Forming Tap- Bright
Forming Tap; #10 - 24 ; 2-3/8″ OAL × 0.194″ Shank Dia. ; HSS ; Uncoated ; H4 | 2B ; Series 1091
| Tool Type | Machine Tap | Chamfer | Plug |
| Thread Diameter Size (TDZ) | #10 | Length Group | 2D |
| Overall Length (OAL) | 2-3/8″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 1/2″ | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Style | Plug |
| Thread Tolerance Class (TCTR) | H4 | 2B | End Shape | Square |
| Thread Standard | NC | Cutting Edge Material | HSS |
| Application | General Purpose | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | | Series/List # | 1091 |
| Coating | Uncoated | Shank Type | Round w/ Drive Square |
| Threads per Inch (TPI) | 24 | Thread Size | #10 - 24 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.015
