TPF M-10X1.5-F HETI
Forming Tap; M10 × 1.5 mm - 32 ; 3.937″ OAL × 1.54″ LU × 0.394″ Shank Dia. ; HSS ; TiN ; H10 ; Series 16B

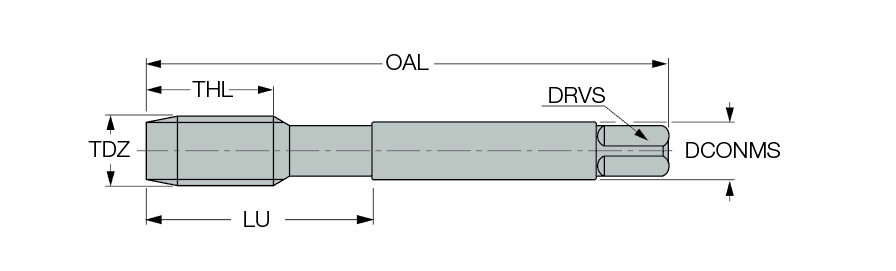

| Tool Type | Machine Blind Hole Taps | Flute Length | 3/8″ |
| Thread Diameter Size (TDZ) | M10 | Chamfer | Plug |
| Thread Pitch (TP) | 1.5 mm | Square Size | 0.131″ × 1/4″ |
| Overall Length (OAL) | 3.937″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.866″ | Style | DIN 371 |
| Usable Length (LU) | 1.54″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Cutting Edge Material | HSS |
| Flute Count (NOF) | 5 | Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | H10 | Pack Size | 12 |
| Tap Standard | DIN 371 | Series/List # | 16B |
| Thread Standard | THFT | | Grade | HETI |
| Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | | Thread Size | M10 × 1.5 |
| Coating | TiN | Body Material | HSS |
| Threads per Inch (TPI) | 32 | Thread Form Type (THFT) | M60 |
Product Features

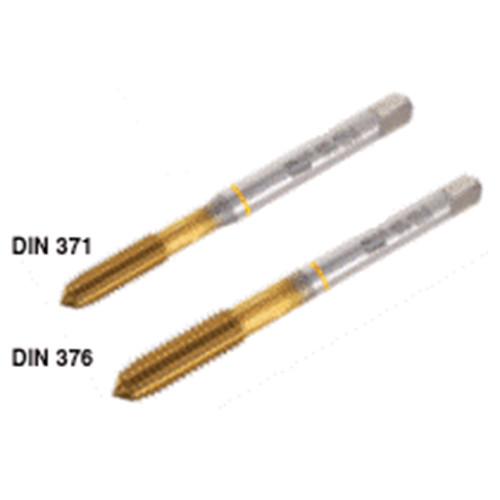

| Family Description | HSS cold forming machine taps - ISO metric coarse threads, according to DIN 13. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.121
