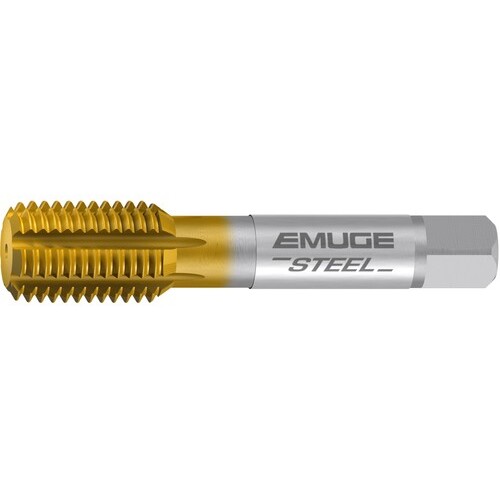

Forming Tap; M10 × 1.5 mm × 2.94″ OAL × 0.381″ Shank Dia. ; HSSE ; TiN ; 6H
Forming Tap; M10 × 1.5 mm ; 2.94″ OAL × 0.381″ Shank Dia. ; HSSE ; TiN ; 6H ; Series AU921400
| Tool Type | Forming Tap | Applicable Material | | Universal Materials | |
| Thread Diameter Size (TDZ) | M10 | Coating | TiN |
| Thread Pitch (TP) | 1.5 mm | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2.94″ | Chamfer | 2P-3P |
| Thread Cutting Part Length (THL) | 0.87″ | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | 6H | Cutting Edge Material | HSSE |
| Tap Standard | ANSI | Cutting Direction (HAND) | Right Hand |
| Thread Standard | Metric | Series/List # | AU921400 |
| Application | Blind Hole | Thread Size | M10 × 1.5 |
Product Features
| Remarks | • The Druck Steel roll form tap is a universal design for the chipless production of internal threads, blind and though hole. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
