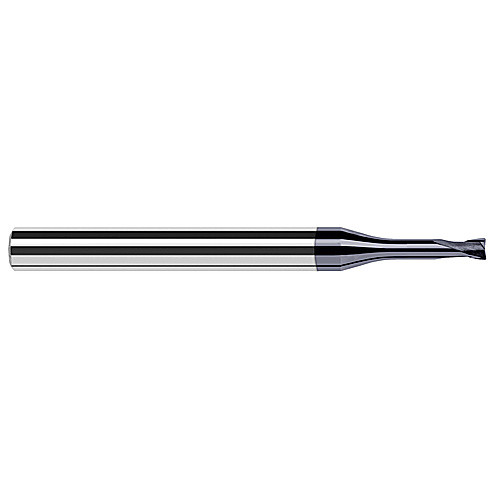

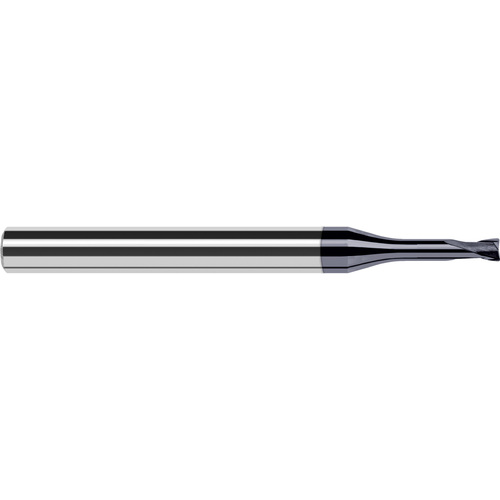

End Mills for Hardened Steels - Finishers - 0.0200″ Cutter Diameter × 0.0040″ Radius × 0.0160″ Length of Cut × 0.1000″ Reach Carbide Corner Radius End Mill for Hard Milling, 2 Flutes, AlTiN Nano Coated
Corner Radius End Mill; 0.02″ Dia. × 0.016″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 0.02″ | Usable Length (LU) | 0.1″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Hard Materials | |
| Depth of Cut Maximum (APMX) | 0.016″ | Application | Finishing |
| Overall Length (OAL) | 2-1/2″ | Corner Radius (RE) | 0.004″ |
| Cutting Edge Material | Carbide | Length Group | 5D |
| Coating | AlTiN | Decimal Equivalent | 0.02″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| End Shape | Corner Radius |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.064
