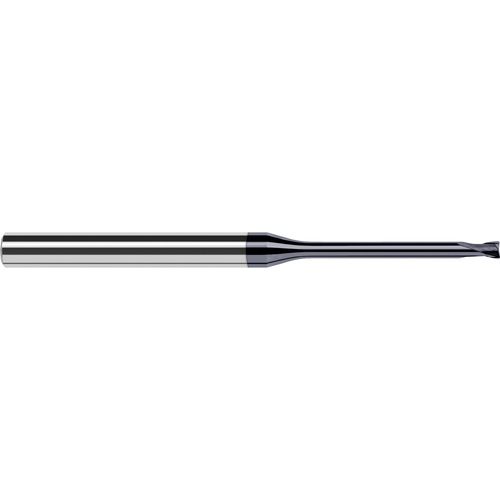

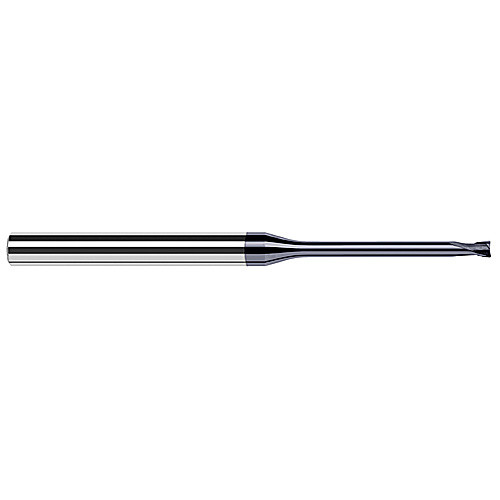

End Mills for Hardened Steels - Finishers - 0.0780″ (5/64″) Cutter Diameter × 0.0100″ Radius × 0.0620″ (1/16″) Length of Cut × 0.9370″ (15/16″) Reach Carbide Corner Radius End Mill for Hard Milling, 2 Flutes, AlTiN Nano Coated
SQ End Mill; 5/64″ Dia. × 1/16″ LOC × 1/4″ Shank Dia. × 4″ OAL ; 0.01″ RE ; 2 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 5/64″ | Usable Length (LU) | 15/16″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Hard Materials | |
| Depth of Cut Maximum (APMX) | 1/16″ | Application | Finishing |
| Overall Length (OAL) | 4″ | Corner Radius (RE) | 0.01″ |
| Cutting Edge Material | Carbide | Length Group | 12D |
| Coating | AlTiN | Decimal Equivalent | 0.078125″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| End Shape | Corner Radius |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.102
