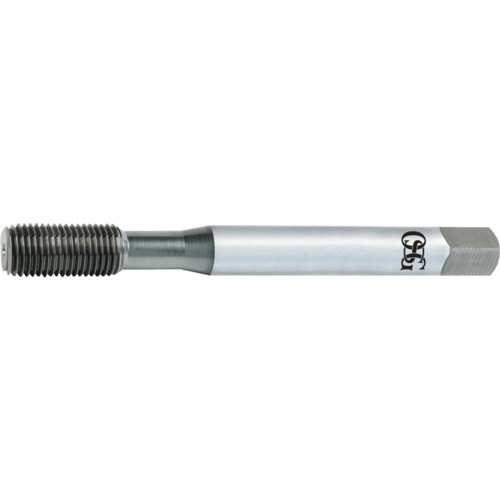

1/4-28 H3 4.5P NRT TIN
Forming Tap; 1/4″ - 28 ; 2-1/2″ OAL × 1.102″ LU × 0.255″ Shank Dia. ; HSSCo ; TiN ; H3 ; Series 14001
| Tool Type | Forming Tap | Coating | TiN |
| Thread Diameter Size (TDZ) | 1/4″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2-1/2″ | Threads per Inch (TPI) | 28 |
| Thread Cutting Part Length (THL) | 1″ | Chamfer | 4.5P |
| Usable Length (LU) | 1.102″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | End Shape | Chamfer |
| Flute Count (NOF) | 0 | Cutting Edge Material | HSSCo |
| Thread Tolerance Class (TCTR) | H3 | Series/List # | 14001 |
| Thread Standard | UNF | Thread Size | 1/4″ - 28 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.035
