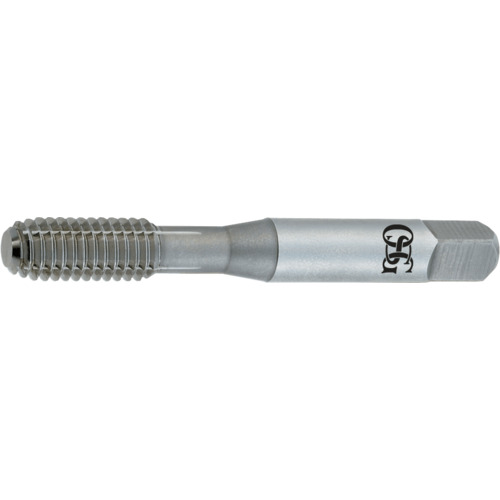

5/16-24 0 Fl 2B High Speed Steel Forming Tap- TiCN
Forming Tap; 5/16″ - 24 ; 2-23/32″ OAL × 0.318″ Shank Dia. ; HSS ; TiCN ; Series 286
| Tool Type | Forming Tap | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 5/16″ | Threads per Inch (TPI) | 24 |
| Overall Length (OAL) | 2-23/32″ | Helix Angle | 0 Degrees |
| Thread Cutting Part Length (THL) | 1-1/8″ | Chamfer | 1.5P-2P |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Measurement Type | Inch |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Standard | UNF | Cutting Edge Material | HSS |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | | Series/List # | 286 |
| Coating | TiCN | Thread Size | 5/16″ - 24 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.35000
Package Width
.65000
Package Height
.50000
Package Weight
.0600
