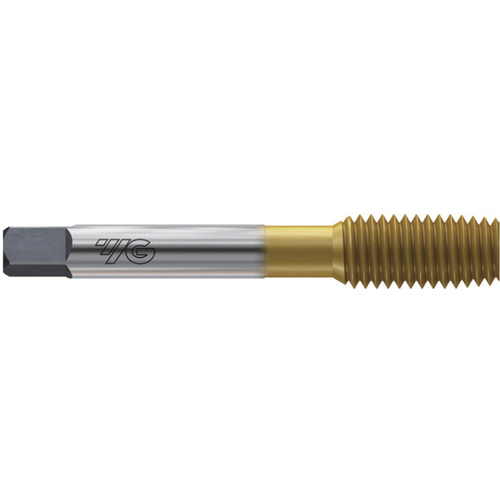

Forming Tap; #6 - 40 ; 2″ OAL × 1.17″ LU × 0.141″ Shank Dia. ; HSS-E ; TIN ; H3 ; Series Z7
| Tool Type | Form Tap | Chamfer | 1.5-2P |
| Thread Diameter Size (TDZ) | #6 | Length Group | 3xD |
| Overall Length (OAL) | 2″ | Square Size | 0.11″ |
| Thread Cutting Part Length (THL) | 0.48″ | Measurement Type | Wire Gauge |
| Usable Length (LU) | 1.17″ | End Shape | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Cutting Edge Material | HSSE |
| Thread Tolerance Class (TCTR) | H3 | Series/List # | Z7 |
| Tapping Prehole Diameter (Pre-hole) | 0.127″ | Shank Type | Square |
| Thread Standard | UNF | Lobe Count | 4 |
| Coating | TiN | Thread Size | #6 - 40 |
| Threads per Inch (TPI) | 40 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.125
Package Width
0.5
Package Height
0.375
Package Weight
0.0117
