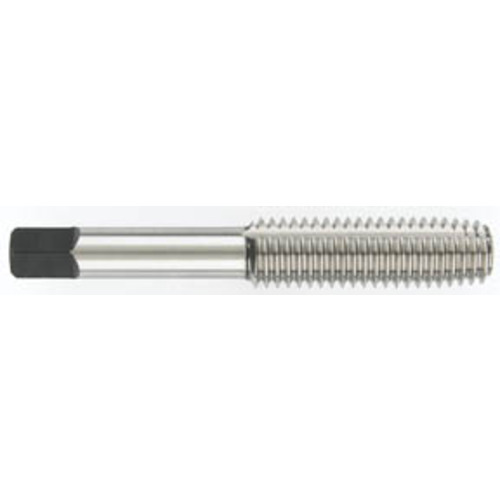

‎#10-32 Dia. - Bottoming - GH6 - HSS Dia. - TiN - Thread Forming Tap Series/List #2105G

‹ ›

‎#10-32 Dia. - Bottoming - GH6 - HSS Dia. - TiN - Thread Forming Tap Series/List #2105G

Item # MT3796400

UNSPSC: 23241615

Brand: Morse Cutting Tools

MFG#: 96400

UPC #: 686125964009

Quantity Available

Virtual Catalog

Thread Diameter Size (TDZ)

#10

Coating

TiN

Overall Length (OAL)

‎2-3/8″

Threads per Inch (TPI)

Thread Cutting Part Length (THL)

7/8″

Chamfer

Bottom

Usable Length (LU)

7/8″

Measurement Type

Machine Screw

Flute Count (NOF)

Series/List #

2105G

Thread Tolerance Class (TCTR)

Thread Size

‎#10 - 32

Product Features

Remarks

• Thread Forming taps cold form rather than cut the threads. Advantages include no chips to dispose of, stronger higher quality threads, increased tapping speeds, longer tap life and reduced tap breakage. Recommended for a wide variety fo ductile materials.• Lube Grooves provide a path for lubication and act as vents to relieve pressure in blind hole tapping.• Titanium Nitride (TiN) Coating results in a extremely hard surface with high lubicity for increased tool life, improved thread quality, reduced torque and increased tapping speeds tapping speeds for greater productivity.

Country of Origin

USA

Shipping Info

Package Length

3.00000

Package Width

.25000

Package Height

.25000

Package Weight

0.035
