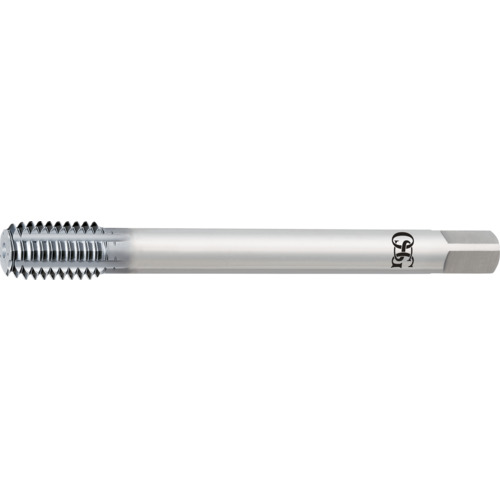

2-56 H3 1.5P EXOPRO
Forming Tap; #2 - 56 ; 1.77″ OAL × 0.428″ LU × 0.14″ Shank Dia. ; HSSCo ; Vanadium ; H3 ; Series 16250
| Tool Type | Forming Tap | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | #2 | Threads per Inch (TPI) | 56 |
| Overall Length (OAL) | 1.77″ | Chamfer | 1.5P |
| Thread Cutting Part Length (THL) | 0.389″ | Square Size | 0.109″ |
| Usable Length (LU) | 0.428″ | Measurement Type | Wire Gauge |
| Connection Diameter Machine Side (DCONMS) | 0.14″ | Cutting Edge Material | HSSCo |
| Thread Tolerance Class (TCTR) | H3 | Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNC | Pack Size | 1 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Series/List # | 16250 |
| Coating | Vanadium | Thread Size | #2 - 56 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
0.01
