M8X0.75 D7 1.5P EXOPRO OIL-S

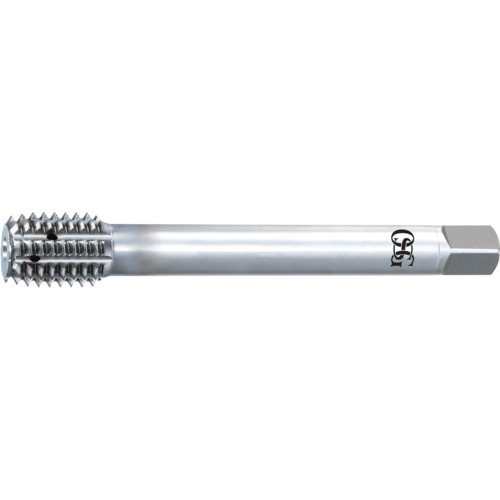

Forming Tap; M8 ; 80 mm OAL × 30 mm LU × 8.07 mm Shank Dia. ; HSSCo ; Vanadium ; D7 ; Series 16150
| Tool Type | Forming Tap | Coating | Vanadium |
| Thread Diameter Size (TDZ) | M8 | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 80 mm | Chamfer | 1.5P |
| Thread Cutting Part Length (THL) | 12 mm | Square Size | 6.05 mm |
| Usable Length (LU) | 30 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8.07 mm | Cutting Edge Material | HSSCo |
| Thread Tolerance Class (TCTR) | D7 | Cutting Direction (HAND) | Right Hand |
| Thread Standard | Metric | Pack Size | 1 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Series/List # | 16150 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.60000
Package Width
.45000
Package Height
.40000
Package Weight
.0600
