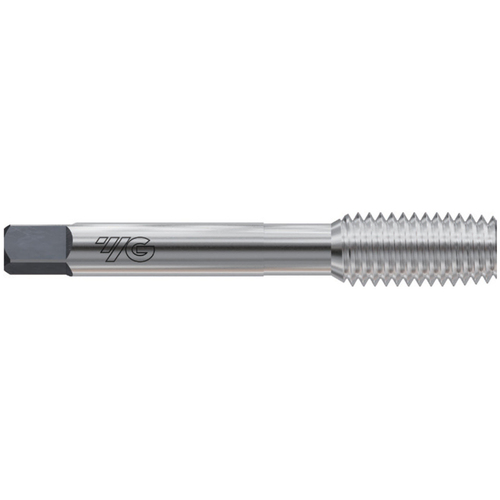

Forming Tap; 5/16″ - 18 ; 2.72″ OAL × 2.06″ LU × 0.318″ Shank Dia. ; HSS-E ; Bright ; H5 ; Series Z4
| Tool Type | Form Tap | Chamfer | 4P-5P |
| Thread Diameter Size (TDZ) | 5/16″ | Length Group | 3xD |
| Overall Length (OAL) | 2.72″ | Square Size | 0.238″ |
| Thread Cutting Part Length (THL) | 0.93″ | Measurement Type | Inch |
| Usable Length (LU) | 2.06″ | End Shape | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Cutting Edge Material | HSSE |
| Thread Tolerance Class (TCTR) | H5 | Series/List # | Z4 |
| Tapping Prehole Diameter (Pre-hole) | 0.2879″ | Shank Type | Square |
| Thread Standard | UNC | Lobe Count | 4 |
| Coating | Uncoated | Thread Size | 5/16″ - 18 |
| Threads per Inch (TPI) | 18 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.75
Package Width
0.625
Package Height
0.5
Package Weight
0.0587
