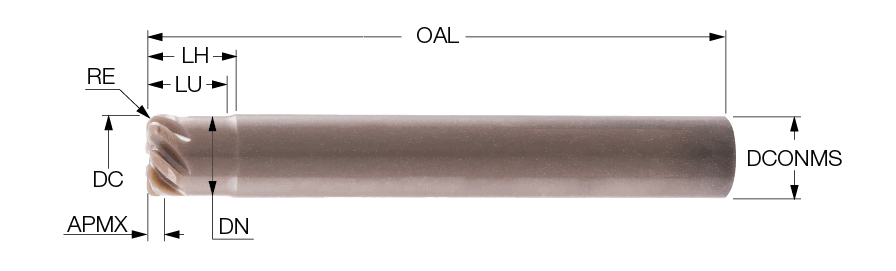

| Cutting Diameter (DC) | 16 mm | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Grade | IS35 |
| Depth of Cut Maximum (APMX) | 16 mm | Neck Diameter (DN) | 15.5 mm |
| Overall Length (OAL) | 83 mm | Head Length (LH) | 35 mm |
| Cutting Edge Material | Ceramic | Body Half Taper Angle (BHTA) | 15 Degrees |
| Flute Count (NOF) | 3 | Maximum Feed per Tooth (fz(max)) | 0.04 mm/tooth |
| Flute Helix Angle (FHA) | 30 Degrees | Minimum Feed per Tooth (fz(min)) | 0.02 mm/tooth |
| Shank Type | Round | Coolant Supply Property (CSP) | External |
| End Shape | Corner Radius | Body Material | Ceramic |
| Usable Length (LU) | 34.5 mm | Measurement Type | Metric |
| Applicable Material | | Cast Iron | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | e8 |
| Corner Radius (RE) | 1.9 mm | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features

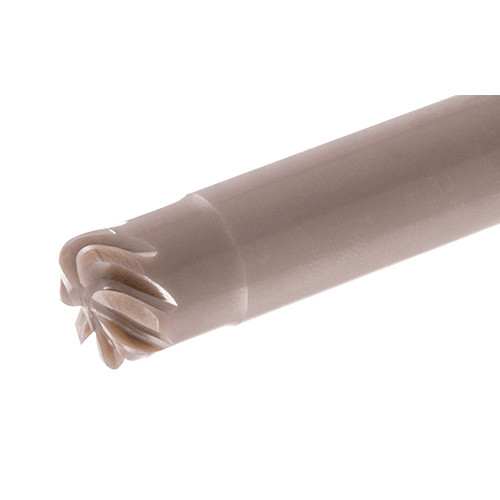

| Family Description | 3 and 7 Flute solid ceramic endmills with relieved necks for machining nickel based alloys,cast iron and graphite at very high cutting speed. | Country of Origin | Germany |
| Remarks | Maximum width of cut for the 3 flute cutters is 0.1xDC Maximum width of cut for the 7 flute cutters is DC Only air coolant should be used |
Shipping Info
Package Weight
0.143
