ECY-S5 10-22C10CFR.5-72 6 IC608

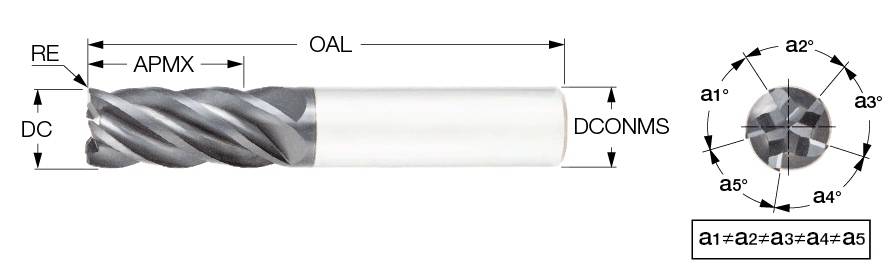

SQ End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 0.5 mm RE ; 5 FL ; 22 mm LBS ; Carbide ; AlTiCrSiN
| Cutting Diameter (DC) | 10 mm | Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Corner Radius (RE) | 0.5 mm |
| Depth of Cut Maximum (APMX) | 22 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 72 mm | Grade | IC608 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide non center cutting endmills 90° |
| Coating | AlTiCrSiN | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Flute Count (NOF) | 5 | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Helix Angle (FHA) | 37 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 22 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |

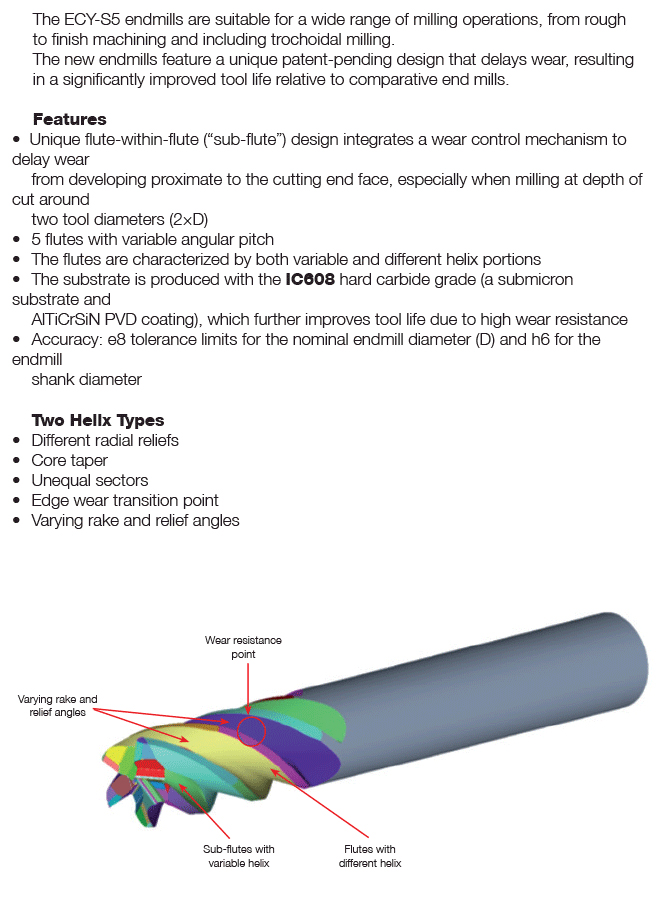

Product Features
| Family Description | 5 flute endmills with different helix for milling austenitic, duplex, cast and precipitation hardening stainless steels. | Country of Origin | Israel |
Shipping Info
Package Weight
0.055
