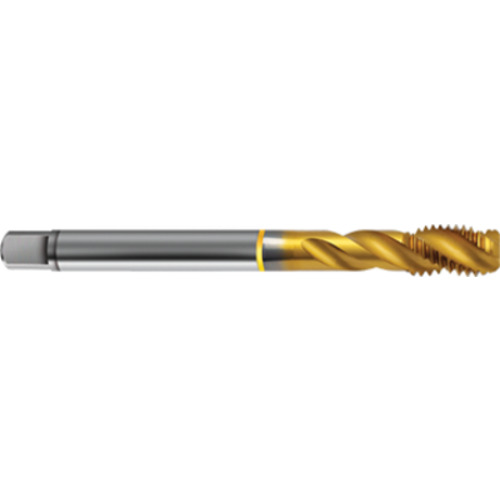

M20X2.50 D9 COB SEMI-BTM-TIN
Forming Tap; M20 × 2.5 mm ; 140 mm OAL × 16 mm Shank Dia. ; TiN ; D9 ; Series 5738
Additional Tariff Surcharge of 6.6 %
| Tool Type | Cut Tap | Thread Standard | Metric |
| Thread Diameter Size (TDZ) | M20 | Application | Blind Hole |
| Thread Pitch (TP) | 2.5 mm | Coating | TiN |
| Overall Length (OAL) | 140 mm | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Helix Angle | 40 Degrees |
| Flute Count (NOF) | 4 | Chamfer | 2-3 Form C |
| Drive Size (DRVS) | 12 mm | Series/List # | 5738 |
| Thread Tolerance Class (TCTR) | D9 | Thread Size | M20 × 2.5 |
| Tap Standard | DIN 376 | Body Material | HSS-E |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Length
5.50000
Package Width
1.09000
Package Height
1.09000
Package Weight
0.442
