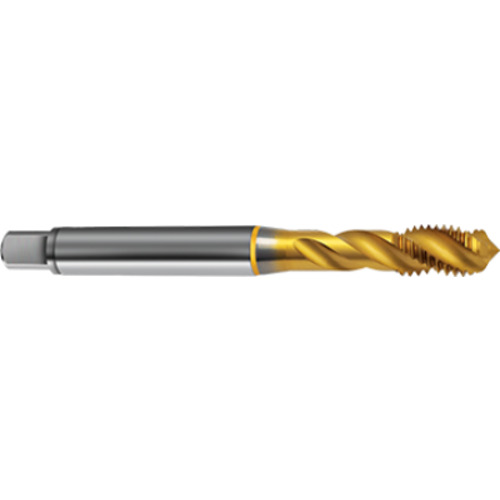

M3X0.50 D3 COB SEMI-BTM TAP-TIN
Forming Tap; M3 × 0.5 mm ; 56 mm OAL × 18 mm LU × 3.5 mm Shank Dia. ; TiN ; D3 ; Series 5737
Additional Tariff Surcharge of 6.6 %
| Tool Type | Cut Tap | Thread Standard | Metric |
| Thread Diameter Size (TDZ) | M3 | Application | Blind Hole |
| Thread Pitch (TP) | 0.5 mm | Coating | TiN |
| Overall Length (OAL) | 56 mm | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 18 mm | Helix Angle | 40 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3.5 mm | Chamfer | 2-3 Form C |
| Flute Count (NOF) | 3 | Series/List # | 5737 |
| Drive Size (DRVS) | 2.7 mm | Thread Size | M3 × 0.5 |
| Thread Tolerance Class (TCTR) | D3 | Body Material | HSS-E |
| Tap Standard | DIN 371 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Length
3.80000
Package Width
.24000
Package Height
.24000
Package Weight
.012
