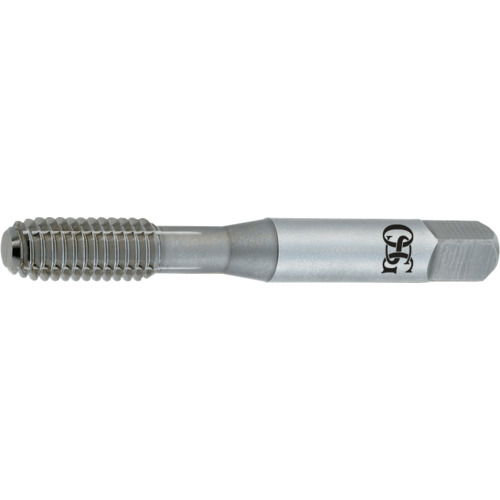

M5X0.8 6H TiN FORMING TAP
Forming Tap; M5 × 0.8 mm ; 2-3/8″ OAL × 0.194″ Shank Dia. ; HSS ; TiN ; Series 286
| Tool Type | Forming Tap | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | M5 | Helix Angle | 0 Degrees |
| Thread Pitch (TP) | 0.8 mm | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 2-3/8″ | Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 7/8″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Cutting Edge Material | HSS |
| Flute Count (NOF) | 0 | Series/List # | 286 |
| Thread Standard | Metric | Thread Size | M5 × 0.8 |
| Coating | TiN |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
0.035
