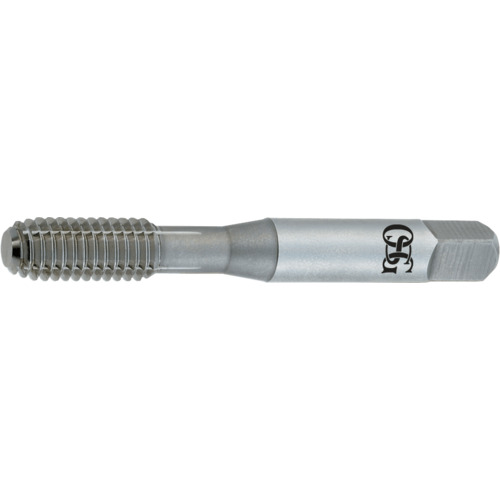

10-24 0 Fl 2B High Speed Steel Forming Tap- TiCN
Forming Tap; #10 - 24 ; 2-3/8″ OAL × 0.194″ Shank Dia. ; HSS ; TiCN ; Series 286
| Tool Type | Forming Tap | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | #10 | Threads per Inch (TPI) | 24 |
| Overall Length (OAL) | 2-3/8″ | Helix Angle | 0 Degrees |
| Thread Cutting Part Length (THL) | 7/8″ | Chamfer | 1.5P-2P |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Standard | UNC | Cutting Edge Material | HSS |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | | Series/List # | 286 |
| Coating | TiCN | Thread Size | #10 - 24 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
.0300
