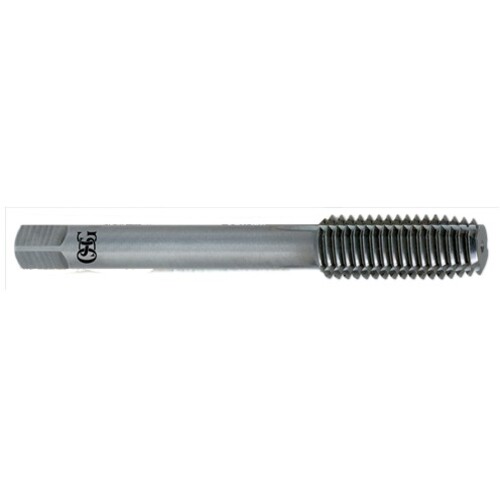

M3x0.5 0Fl RH5 Carbide Forming Tap-Bright
Forming Tap; M3 × 46 mm OAL × 20.2 mm LU × 4 mm Shank Dia. ; Carbide ; Bright ; | RH5 | ; Series 369
| Tool Type | Forming Tap | Thread Standard | Metric |
| Thread Diameter Size (TDZ) | M3 | Applicable Material | Aluminum / Non-Ferrous Materials |
| Overall Length (OAL) | 46 mm | Coating | Bright |
| Thread Cutting Part Length (THL) | 18 mm | Chamfer | 4P-4.5P |
| Usable Length (LU) | 20.2 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 4 mm | End Shape | Chamfer |
| Flute Count (NOF) | 0 | Cutting Edge Material | Carbide |
| Thread Tolerance Class (TCTR) | RH5 | Series/List # | 369 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.40000
Package Width
.40000
Package Height
.35000
Package Weight
.0150
