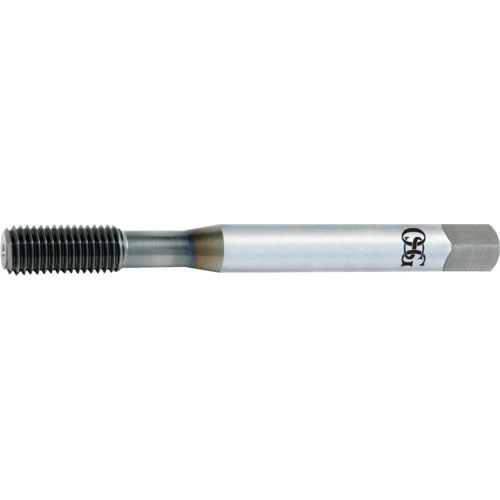

M6X1 D8 1.5P EXO-NRT
Forming Tap; M6 ; 63 mm OAL × 26.1 mm LU × 6.47 mm Shank Dia. ; HSS-PM ; TiCN ; D8 ; Series 14150
| Tool Type | Forming Tap | Applicable Material | | Steel | Stainless Steel | Hard Materials | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | M6 | Coating | TiCN |
| Overall Length (OAL) | 63 mm | Coolant Supply Property (CSP) | External |
| Thread Cutting Part Length (THL) | 1″ | Helix Angle | 0 Degrees |
| Usable Length (LU) | 26.1 mm | Chamfer | 1.5P |
| Connection Diameter Machine Side (DCONMS) | 6.47 mm | Measurement Type | Metric |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | D8 | Cutting Edge Material | HSS-PM |
| Thread Standard | Metric | Series/List # | 14150 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.03
