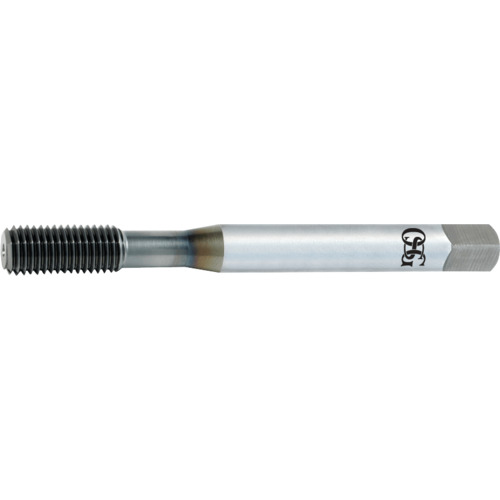

5/16-24 0 Fl H4 VC-10 Forming Tap- TiCN
Forming Tap; 5/16″ - 24 ; 2.72″ OAL × 1.126″ LU × 0.318″ Shank Dia. ; HSS-PM ; TiCN ; H4 ; Series 14050
| Tool Type | Forming Tap | Coating | TiCN |
| Thread Diameter Size (TDZ) | 5/16″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2.72″ | Threads per Inch (TPI) | 24 |
| Thread Cutting Part Length (THL) | 1-1/8″ | Helix Angle | 0 Degrees |
| Usable Length (LU) | 1.126″ | Chamfer | 2.5P |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Measurement Type | Inch |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | H4 | Cutting Edge Material | HSS-PM |
| Thread Standard | UNF | Series/List # | 14050 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Aluminum / Non-Ferrous Materials | | Thread Size | 5/16″ - 24 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.65000
Package Width
.45000
Package Height
.40000
Package Weight
0.055
