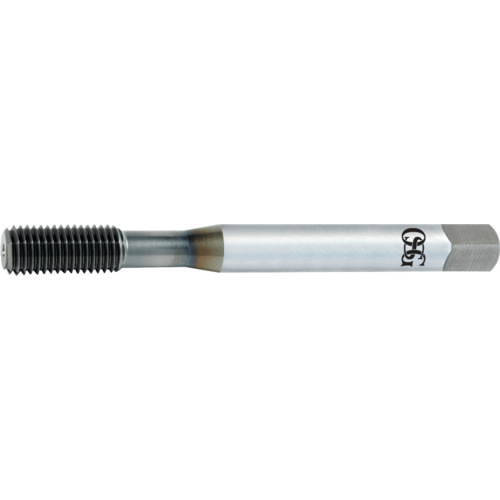

6-32 H6 1.5P EXO-NRT
Forming Tap; #6 - 32 ; 2″ OAL × 0.713″ LU × 0.141″ Shank Dia. ; HSS-PM ; TiCN ; H6 ; Series 14050
| Tool Type | Forming Tap | Coating | TiCN |
| Thread Diameter Size (TDZ) | #6 | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2″ | Threads per Inch (TPI) | 32 |
| Thread Cutting Part Length (THL) | 11/16″ | Helix Angle | 0 Degrees |
| Usable Length (LU) | 0.713″ | Chamfer | 1.5P |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | H6 | Cutting Edge Material | HSS-PM |
| Thread Standard | UNC | Series/List # | 14050 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Aluminum / Non-Ferrous Materials | | Thread Size | #6 - 32 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
0.01
