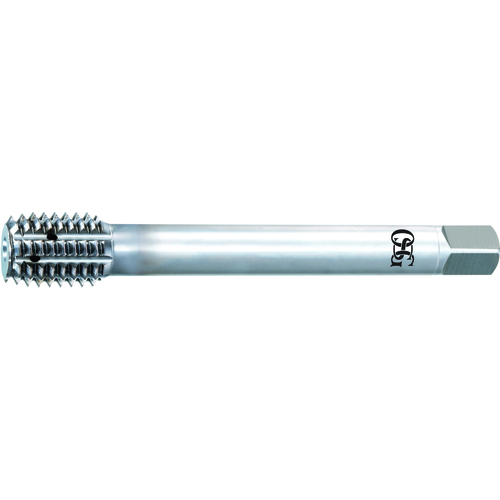

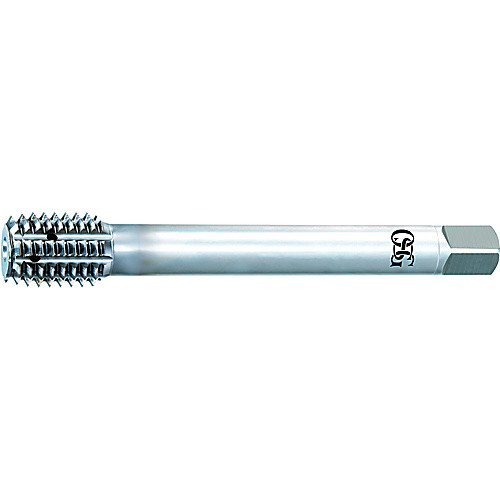

M24 2.00 Dia-D13-HSS-CO-V Coating-Forming Tap
Forming Tap; M24 ; 140 mm OAL × 68.4 mm LU × 19.3 mm Shank Dia. ; HSSCo ; Vanadium ; D13 ; Series 16150
| Tool Type | High Performance Tap | Coating | Vanadium |
| Thread Diameter Size (TDZ) | M24 | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 140 mm | Chamfer | 2.5P |
| Thread Cutting Part Length (THL) | 2-1/2″ | Measurement Type | Metric |
| Usable Length (LU) | 68.4 mm | Style | Forming |
| Connection Diameter Machine Side (DCONMS) | 19.3 mm | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | D13 | Cutting Edge Material | HSSCo |
| Thread Standard | Metric | Series/List # | 16150 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
Product Features
| Remarks | •Cobalt High Speed Steel •OSG's V Multi-layered Coating •Modified Bottom Chamfer •DIN Overall Length •Recommended for Aluminum, Carbon Steels, Alloy Steels, Die Steels up to 20 HrC, Stainless Steels and Hardened Steels up to 35 HrC | Country of Origin | Japan |
Shipping Info
Package Length
5.60000
Package Width
1.20000
Package Height
1.05000
Package Weight
0.7
