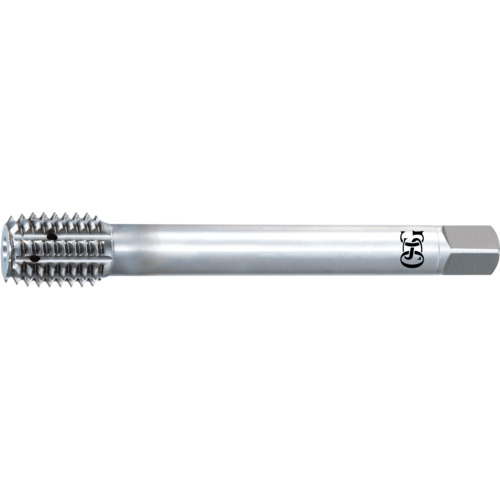

5/16-24 Dia-H5-HSS-CO-V Coating-Forming Tap
Forming Tap; 5/16″ - 24 ; 3.54″ OAL × 1.378″ LU × 0.318″ Shank Dia. ; HSSCo ; Vanadium ; H5 ; Series 16050
| Tool Type | High Performance Tap | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Diameter Size (TDZ) | 5/16″ | Threads per Inch (TPI) | 24 |
| Overall Length (OAL) | 3.54″ | Chamfer | 2.5P |
| Thread Cutting Part Length (THL) | 2-1/2″ | Measurement Type | Inch |
| Usable Length (LU) | 1.378″ | Style | Forming |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | H5 | Cutting Edge Material | HSSCo |
| Thread Standard | UNF | Series/List # | 16050 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Thread Size | 5/16″ - 24 |
| Coating | Vanadium |
Product Features
| Remarks | •Cobalt High Speed Steel •Coolant Thru •OSG's V Multi-layered Coating •Din Overall Length •Modified Bottom Chamfer •Recommended for Aluminum, Carbon Steels, Alloy Steels, Die Steels up to 20 HrC, Stainless Steels and Hardened Steels up to 35 HrC | Country of Origin | Japan |
Shipping Info
Package Length
4.45000
Package Width
.50000
Package Height
.45000
Package Weight
0.065
