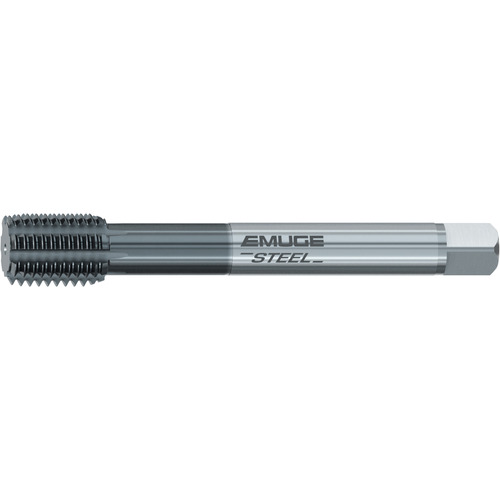

Forming Tap; M12 × 1.5 mm × 100 mm OAL × 9 mm Shank Dia. ; HSSE-PM ; TiCN ; 6HX
| Tool Type | Forming Tap | Applicable Material | | Steel | |
| Thread Diameter Size (TDZ) | M12 | Coating | TiCN |
| Thread Pitch (TP) | 1.5 mm | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 100 mm | Chamfer | 2P-3P |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Cutting Edge Material | HSSE-PM |
| Thread Tolerance Class (TCTR) | 6HX | Cutting Direction (HAND) | Right Hand |
| Tap Standard | DIN | Series/List # | C5216F00 |
| Thread Standard | Metric | Thread Size | M12 × 1.5 |
| Application | Blind Hole |
Product Features
| Remarks | • The InnoForm Steel roll form tap is designed for steel and ferrous materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.999
