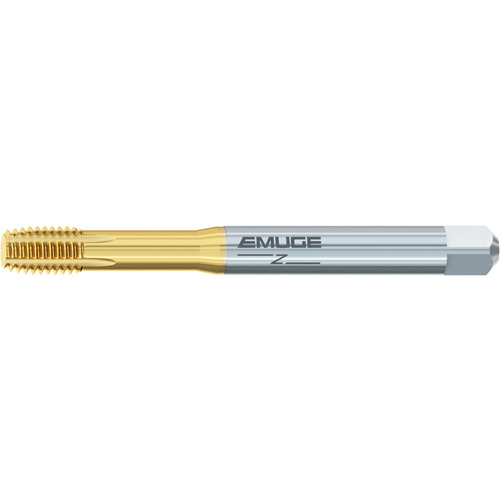

Forming Tap; M3 × 0.5 mm × 56 mm OAL × 3.5 mm Shank Dia. ; HSSE-PM ; TiN ; 6HX

‹ ›

Forming Tap; M3 × 0.5 mm × 56 mm OAL × 3.5 mm Shank Dia. ; HSSE-PM ; TiN ; 6HX

Item # ER45B529Z700030

Brand: Emuge-Franken

MFG #: B529Z700.0030

Legacy Part #: ER45B529Z700030

TradeName: EMUGE - Z

Quantity Available

Tool Type

Forming Tap

Applicable Material

| Other Non-Metallic Materials |

Thread Diameter Size (TDZ)

Coating

TiN

Thread Pitch (TP)

0.5 mm

Coolant Supply Property (CSP)

External

Overall Length (OAL)

56 mm

Chamfer

‎2P-3P

Connection Diameter Machine Side (DCONMS)

3.5 mm

Cutting Edge Material

HSSE-PM

Thread Tolerance Class (TCTR)

6HX

Cutting Direction (HAND)

Right Hand

Tap Standard

DIN

Series/List #

B529Z700

Thread Standard

Metric

Thread Size

M3 × 0.5

Application

Blind Hole

Product Features

Remarks

• The InnoForm Z roll form tap is designed for aluminum alloys and low carbon steel applications. • Longer tool life and more consistent thread quality.

Country of Origin

Germany

Shipping Info

Package Weight

.999
