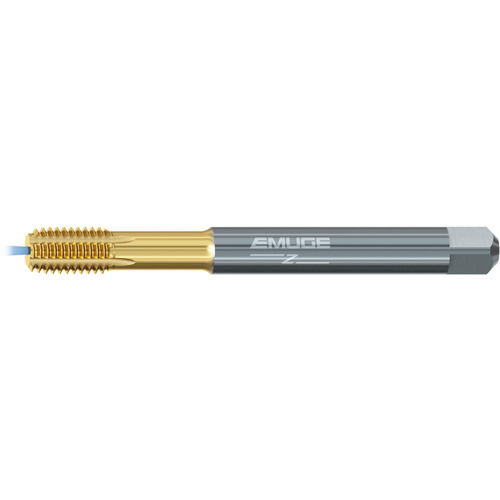

Forming Tap; 5/16″ - 24 × 3.543″ OAL × 0.318″ Shank Dia. ; Carbide ; TiN ; 2BX
Forming Tap; 5/16″ - 24 ; 3.543″ OAL × 0.318″ Shank Dia. ; Carbide ; TiN ; 2BX
| Tool Type | Forming Tap | Applicable Material | | Other Non-Metallic Materials | |
| Thread Diameter Size (TDZ) | 5/16″ | Coating | TiN |
| Overall Length (OAL) | 3.543″ | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Threads per Inch (TPI) | 24 |
| Thread Tolerance Class (TCTR) | 2BX | Chamfer | 2P-3P |
| Tap Standard | DIN | ANSI | Cutting Edge Material | Carbide |
| Thread Standard | UNF | Cutting Direction (HAND) | Right Hand |
| Application | Blind Hole | Series/List # | BU38Z800 |
Product Features
| Remarks | • The InnoForm Z roll form tap is designed for aluminum alloys and low carbon steel applications. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.057
